51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Example shown on F01: There may be differences in detail in the case of other vehicle types.

Release all expanding rivets/clips on damping material (1).

Remove damping material (1).

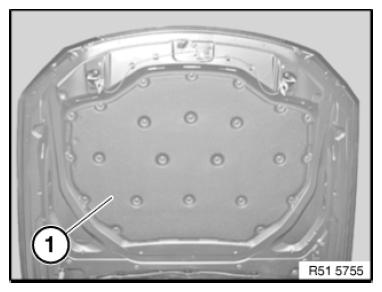

Fig 1: Identifying Damping Material

Courtesy of BMW OF NORTH AMERICA, INC.
