67 62 000 Removing and installing or replacing flat motor for front left or right power window unit

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT POWER WINDOW UNIT

Release screws (1) and detach flat motor (2) from power window unit.

Tightening torque: 67 62 1AZ

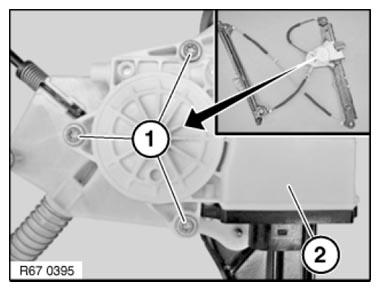

Fig 1: Identifying Power Window Unit Flat Motor And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

An initialization must be carried out in order to activate anti-trapping protection.

Read and comply with NOTES on initializing power windows.
