51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 240

WARNING: Risk of injury!
Carry out work on the power window unit only when the power window motor is de-energized.

Necessary preliminary tasks

Remove SOUND INSULATION IN FRONT DOOR .
Remove outer window cavity cover strip.

Loosen hook screws (1) with special tool 51 3 240 on ring gear.

Tightening torque 51 33 1AZ .

Fig 1: Loosening Hook Screws Using Special Tool (51 3 240)

G08485896

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Slacken hook screw on ring gear (1) until it can be easily twisted out at the inner star (2).

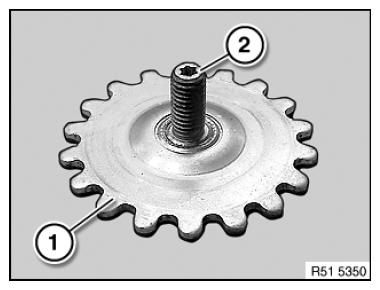

Fig 2: Identifying Ring Gear And Inner Star

G08485906

Courtesy of BMW OF NORTH AMERICA, INC.

Open door window glass (1) until hook screws (2) are accessible.

IMPORTANT: Risk of injury!
Disconnect plug connection (3) at power window motor (risk of trapping).

Release hook screws (2) (turn in clockwise direction).

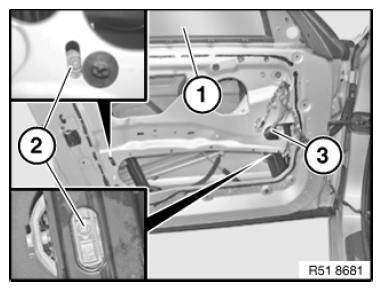

Fig 3: Identifying Door Window Glass, Hook Screws And Plug Connection

G08485907

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Door window glass (3) remove for purposes of clarity.

Raise holder (1) at lug (2) and remove door window glass (3) in upward direction.

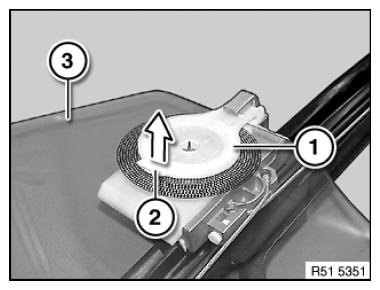

Fig 4: Removing Door Window Glass

G08485908

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

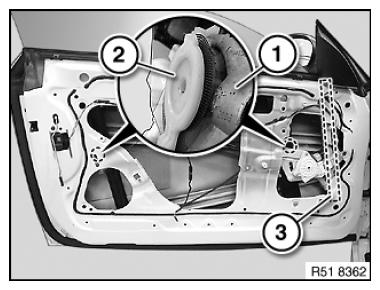

Fig 5: Identifying Door Window Glass, Holder And Window Guide

G08485909

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust DOOR WINDOW GLASS CAVITY DIMENSIONS .

Adjust DOOR WINDOW GLASS .

Carry out function check on power window unit and anti-trapping protection.

If necessary, NORMALIZE power window unit.
