51 21... Removing and installing left or right lock barrel of front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CARRIER FOR OUTER DOOR HANDLE .

Release screws (1).

Remove gearing cover (2).

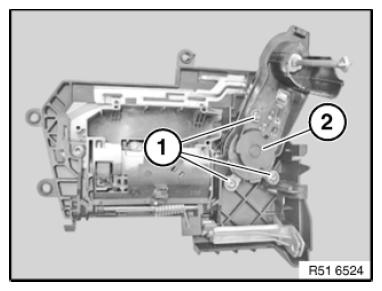

Fig 1: Identifying Gearing Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press down latch mechanism (1) slightly.

Turn lock cylinder (2) in direction of latch mechanism (1) and remove.

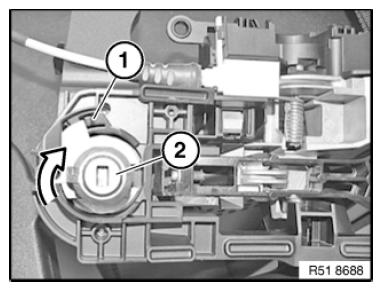

Fig 2: Turning Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
