51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphics used come from the F01.

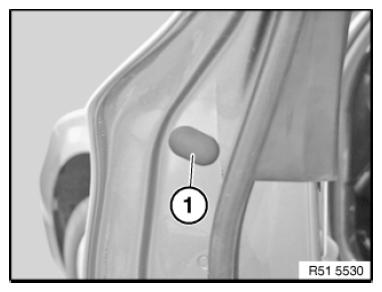

Lever out seal plugs (1).

Fig 1: Identifying Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

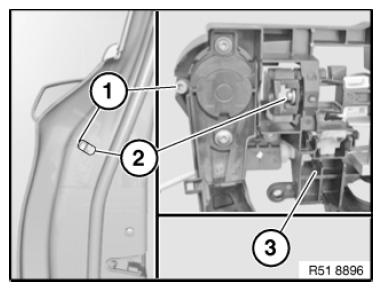

Release clamping bolt (2) from the support for the outer door handle (3).

Fig 2: Identifying Clamping Bolt And Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

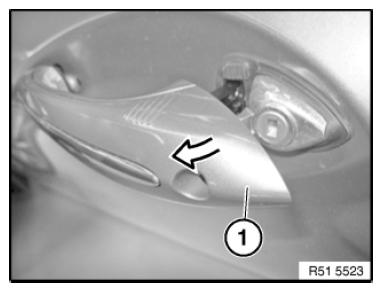

Feed out the rear outer door handle (1) in direction of arrow.

Swivel the outer door handle (1) further in direction of arrow and feed it out at front.

Fig 3: Removing Rear Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

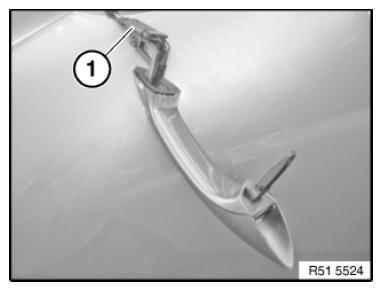

Unlock plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
