51 11... Removing and installing/replacing holder for side view camera on left or right

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove SIDE VIEW VIDEO CAMERA .
Pull side view video camera holder off bumper with a suitable tool (holder is secured with double-sided adhesive tape).

Installation:

Holder (1) is encoded against incorrect installation.

Identification (2) indicates on which side of the vehicle holder (1) is stuck in.

For installation position observe shape of holder (1).

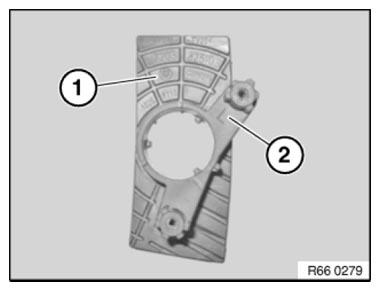

Fig 1: Identifying Camera Holder And Identification Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface on bumper trim (4) and remove adhesive residues.

To position holder (1) optimally, pre-install camera (3) on holder (1) before sticking in the holder.

Outer edge (2) on holder (1) must be flush with outer bumper edge (4).

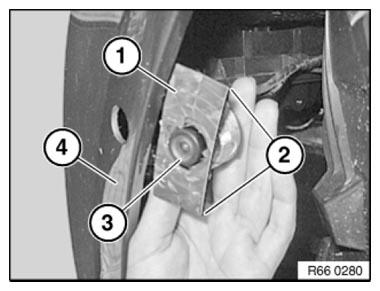

Fig 2: Flushing Outer Edge On Holder With Outer Bumper Edge

Courtesy of BMW OF NORTH AMERICA, INC.
