51 11 050 Removing and installing/replacing support for front bumper panel

Necessary preliminary tasks

• Remove front BUMPER PANEL .

F06/F12/F13 only:

• Remove right headlight

Version with active pedestrian protection

• Remove pedestrian protection sensor

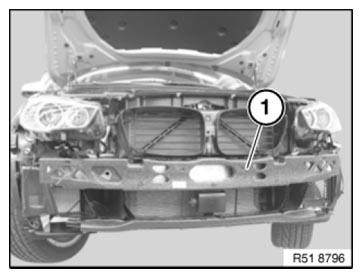

Pull off impact absorber (1) from support.

Installation note:

Connect bottom of impact absorber (1) to support, then press on at top.

Fig 1: Identifying Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

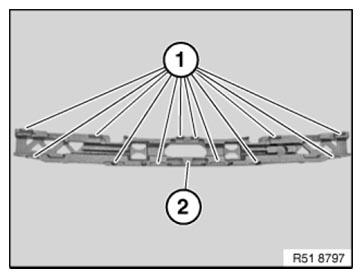

Fig 2: Identifying Retaining Lugs On Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

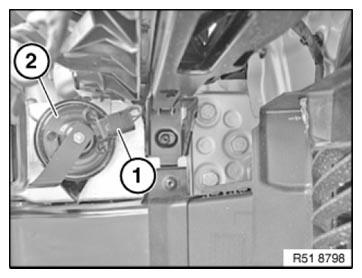

Disconnect connector connections (1) from fanfare horn (2) on left and right.

Fig 3: Identifying Connector Connections And Fanfare Horn

Courtesy of BMW OF NORTH AMERICA, INC.

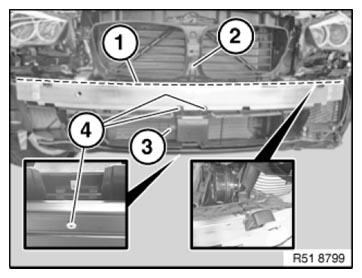

Unclip wiring harness along marking (1).

If necessary, drill out blind rivet (2).

Version with ACC:

Unfasten plug connection (3) and disconnect.

Drill out blind rivets (4).

Fig 4: Identifying Marking For Removing Wiring Harness, Blind Rivet And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

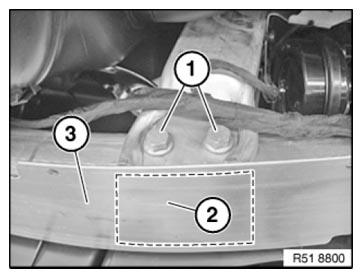

Release screw connection (1) on support (3).

Tightening torque 51 11 4AZ .

Installation note:

Renew self-locking screws/nuts.

Correctly install reinforcement plate (2) on left within the support.

Fig 5: Identifying Screw Connection On Support And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

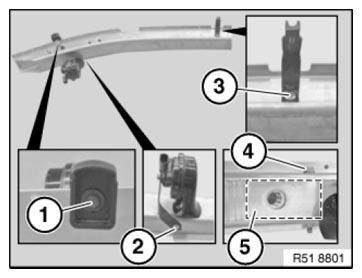

Reposition adapter plates (1) and plastic nuts.

Reposition holder for fanfare horn (2).

Modify holder (3).

Release screw connection (4) from reinforcement plate (5).

Tightening torque 51 11 4AZ .

Reposition reinforcement plate (5).

Fig 6: Identifying Adapter Plates, Fanfare Horn, Holder, Screw Connection And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace self-locking screws.

Only apply screw connection (4) after installation of support on deformation element.
