51 31 242 Replacing rubber frame (bottom) for rear window

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 300

Observe NOTES for securing components with adhesive tape.

Clean rear window (4) in area (3).

Pretreat adhesive area (3) of rubber frame (1) along the lower window edge and mark (2) with primer 205.

Wipe immediately with a clean cloth so as to retain primer transparency.

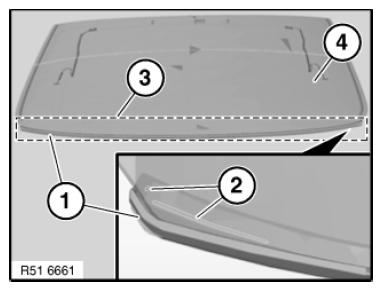

Fig 1: Identifying Adhesive Area, Rear Window And Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber frame (1) is positioned over center marks (2 and 3).

(2) Centre mark on rear window

(3) Centre mark on rear window

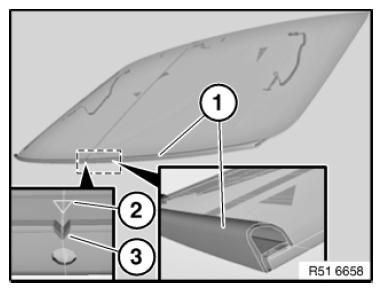

Fig 2: Identifying Rubber Frame And Rear Window Centre Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Start bonding rubber frame (1) at center mark (2).

Pull off liner (5) approx. 100 mm and gently affix rubber frame (1).

Profile of lip (3) must rest correctly against edge (4) of rear window.

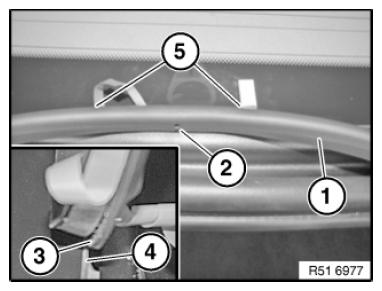

Fig 3: Identifying Rubber Frame, Centre Mark, Lip Profile And Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Do not exert any elongation on the rubber frame when bonding.

Bond rubber frame over the full length and press down with special tool 51 0 300 .

IMPORTANT: In area (A) make sure that the rubber frame rests correctly and without bubbles on the rear window
Especially in the area of the end pieces, make sure there is a clean bonding.

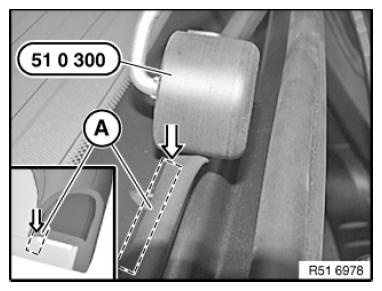

Fig 4: Pressing Down Rubber Frame Using Special Tool (51 0 300)
