Spacer buffer

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

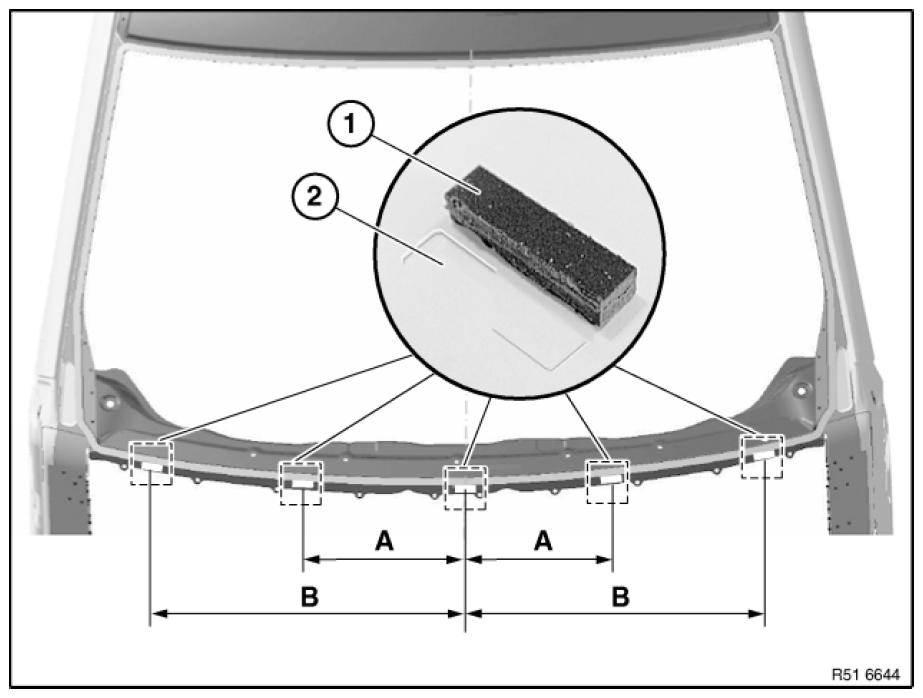

Fig 1: Identifying Spacer Buffers Fitting Position

Courtesy of BMW OF NORTH AMERICA, INC.

To prevent windscreen breakage and wind noise, completely remove any remnants of removed spacer buffers and maintain the installation position exactly.

Installation position of spacer buffers (1) is specified on body side with markings (2).

Spacer buffer to be used 5x5x20 mm.

Installation dimensions:

A ≈ 300 mm

B ≈ 600 mm
