Overview of windscreen bonding

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

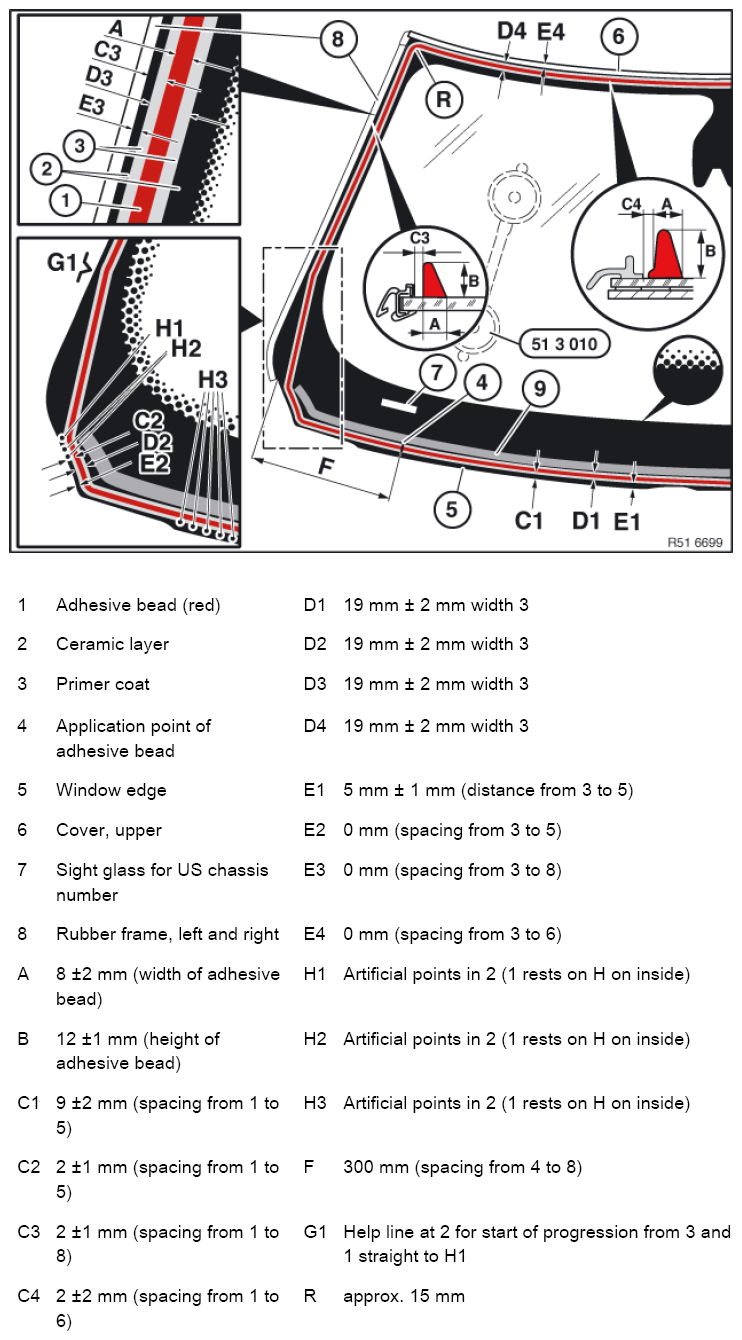

Fig 1: Overview Of Windscreen Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

Perform the following steps carefully on the windscreen using siphon (51 3 010):

Insert between engine compartment lid and cowl panel
Position windscreen at top
Align sides evenly
Insert at bottom and press down
Press windscreen upwards until seal is uniformly contacting roof

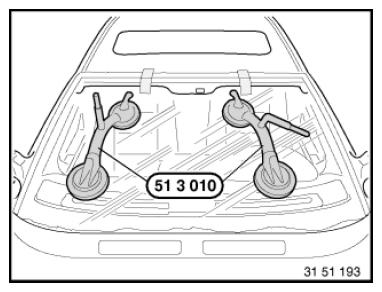

Fig 2: Securing Windscreen Using Siphon (51 3 010)
Courtesy of BMW OF NORTH AMERICA, INC.
Secure windscreen in this position with the two yellow plastic adhesive tapes

Installation note:

The required gap dimension from the window edge to the body aperture all round is:

Without frame ≥ 7 mm
With frame ≥ 6 mm
The minimum joining gap of 5 mm (distance between windscreen and sheet metal flange) is guaranteed in the top area by the windscreen cover and in the bottom area by 5 spacer buffers
