Depending on version

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Tape off body in area of piercing point with fabric adhesive tape.

Push wire from ROLL OUT 2000  along line (1) through adhesive bead (2).

For details on how to proceed, refer to: WINDOW REMOVAL WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup.

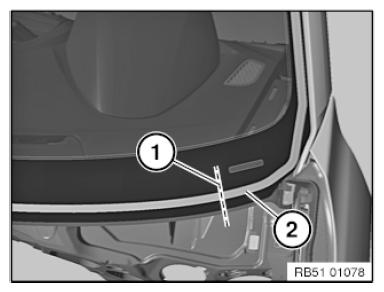

Fig 1: Identifying Adhesive Bead And Line
G08485876Courtesy of BMW OF NORTH AMERICA, INC.
