Right end cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Pull upward on end cover (2) at leather tab (1) and remove.

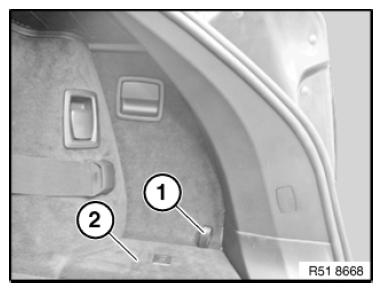

Fig 1: Identifying Luggage Compartment Panel End Cover And Tab
G08486150Courtesy of BMW OF NORTH AMERICA, INC.
