Left end cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Unclip end cover (1) at indicated locations and lift off.

Fig 1: Identifying Luggage Compartment Panel End Cover
G08486148Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace faulty retainers (1).

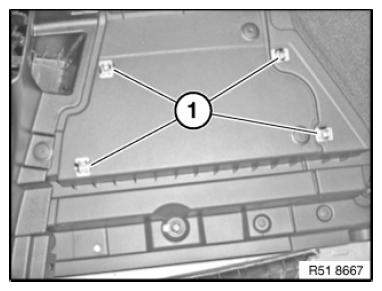

Fig 2: Identifying Luggage Compartment Panel Retainers
G08486149Courtesy of BMW OF NORTH AMERICA, INC.
