51 47 396 Remove rear right floor panel
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SPARE WHEEL WELL PANEL AT REAR .
- POWER DISTRIBUTION BOX COVER ON RIGHT .
- Remove LUGGAGE COMPARTMENT TRIM PANEL COVER, right.
- Remove first aid kit
NOTE:
The tail panel trim has been removed for greater clarity.

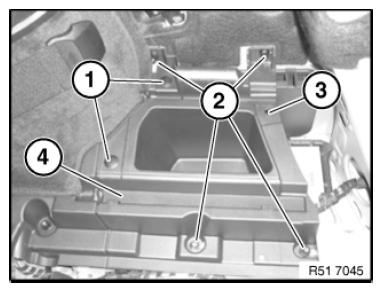

Release plastic nuts (2).
Release expanding rivet (3) from tail panel cover.
Release expanding rivets (1) from floor panel (4).
Remove floor panel (4).
