51 47 395 Removing rear left floor panel
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove SPARE WHEEL WELL PANEL AT REAR .
- Remove FLAP IN LUGGAGE COMPARTMENT ON LEFT .
- Remove left LUGGAGE COMPARTMENT PANEL COVER .
NOTE:

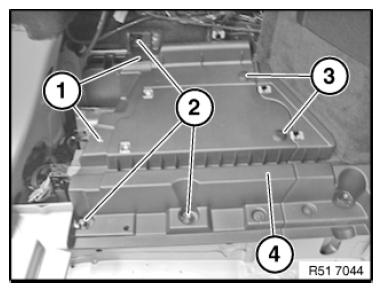

The tail panel trim has been removed for greater clarity.
Release plastic nuts (2).
Release expanding rivets (1) from tail panel trim.
Release expanding rivets (3) from floor panel (4).
Remove floor panel (4).
