51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Unscrew nuts (1).

Tightening torque 51 47 2AZ .

Installation:

Check fit of luggage compartment floor trim panel (2) prior to tightening nuts.

Remove luggage compartment floor trim panel (2).

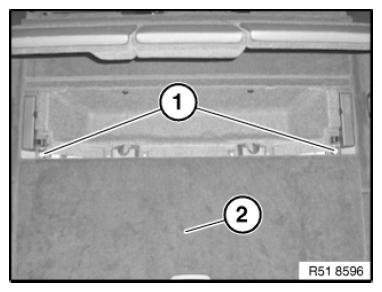

Fig 1: Identifying Luggage Compartment Floor Trim Panel And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
