Replacing model designation (new or newly painted tailgate)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Transfer position of model designation (1) from old tailgate by making an adhesive tape template.

For paintwork, keep adhesive tape template up to installation.

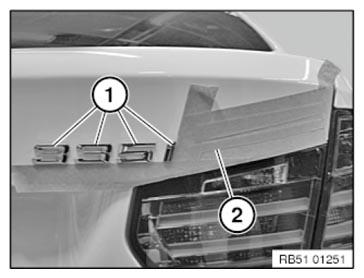

Fig 1: Identifying Model Designation And Masking Tape On Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

Stick masking tape (2) to nearby reference edges of tailgate and therefore determine position of model designation (1).

Pull off masking tape (2) completely and stick to same reference edges of new/painted tailgate.

Check position, realign if required.

Refer to "Installation" operation for further procedure.
