51 14 111 Replacing model name plate, rear: Assembly
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
If required, remove adhesive layer residues with grinding wheel and/or cleaning agent R2.
Clean the adhesive area.

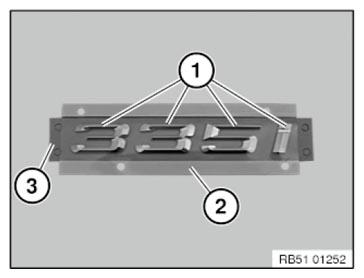

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a backing film (2).
Remove liner (3) (protective film for bonding surface).
Place model designation at marked position and press down firmly.
Remove backing film (2) and template.
