51 14 010 Removing and installing/replacing rear BMW badge
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

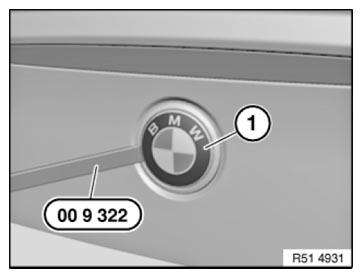

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .
Installation note:
Pull liner* off adhesive tape (1).

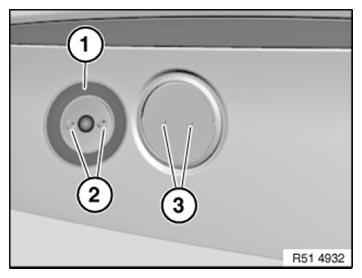

Position plate over guides (2 and 3) and press down firmly.
* Liner is the protective film on a new badge.
