36 10 715 Checking wheel rim for lateral and radial runout

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove WHEEL .
Check WHEEL for lateral and radial runout.
Remove TYRE from disc wheel.
Remove dirt from rim base and rim flange.

IMPORTANT: Disc wheels are not allowed to be repaired!

Mount disc wheel in balancing machine.

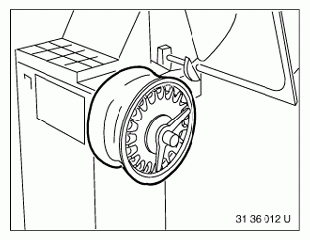

Fig 1: Identifying Disc Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centering element supplied with corresponding balancing machine.

Basic flange
Wheel centering element
Type flange
Clamping nut

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure max. radial runout . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

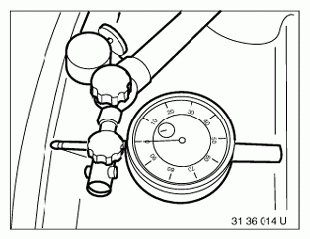

Fig 3: Measuring Max. Radial Runout Using Dial Gauge Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Position sensor on rim flange.

Turn wheel by hand and measure max. lateral runout . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS .

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

Fig 4: Measuring Max. Lateral Runout Using Dial Gauge Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Avoid clamping errors during subsequent installation work.
