36 10 508 Stationary wheel balancing

Special tools required:

• 36 1 010
• 36 1 020

Necessary preliminary tasks

• Remove WHEEL .

Remove any fitted balancing weights, stones in tread pattern and larger dirt contaminations.

Check tire pressure and tire for condition, damage, flat spots (irregularities caused by e.g. parking of vehicle with tires which have run hot). If necessary, check WHEEL AND TYRE  for radial and lateral runout.

Fig 1: Identifying Wheel On Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use BMW-approved wheel centering elements of relevant balancing machine manufacturers.

1. Basic flange
2. Wheel centering element
3. Type flange
4. Clamping nut

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

1. Gently force off tire sidewall with special tool 36 1 020 at appropriate point from rim flange.
2. Install retaining clip (1).
3. Remove special tool 36 1 020 .

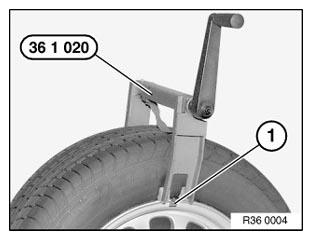

Fig 3: Pressing Off Tire Sidewall With Special Tool (36 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

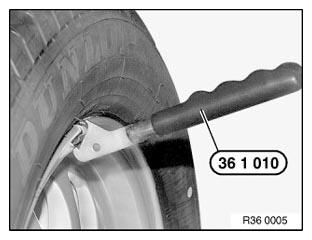

Raise retaining clip with special tool.36 1 010 Slide balance weight underneath and allow it to snap into place.

Fig 4: Raising Retaining Clip Using Special Tool (36 1 010)

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

1. Retaining spring
2. Balance weight

Adhesive weights must be used on all other light-alloy rims.

Max. imbalance  . See WHEELS TWO-PART ALLOY WHEELS , WHEELS ONE-PART ALLOY WHEELS or WHEELS STEEL AND ALUMINUM STRIP WHEELS per wheel.

Fig 5: Identifying Retaining Spring And Balance Weight

Courtesy of BMW OF NORTH AMERICA, INC.

1. Carefully remove any adhesive weights. Do not damage wheel rim when doing so.
2. Select suitable location for fitting.
3. Clean adhesive area thoroughly.
