36 11 123 Removing and installing/replacing an RDC trigger transmitter (rear)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove right WHEEL ARCH TRIM .

Left side

Disconnect plug connection (1).

Release plastic nuts (2).

Remove RDC transmitter (3).

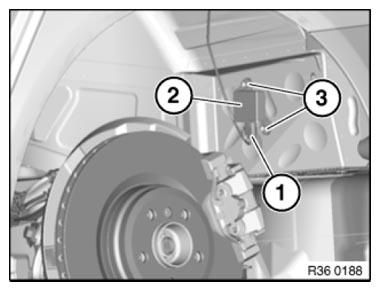

Fig 1: Identifying RDC Transmitter With Plug Connection And Nuts (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Right side

Disconnect plug connection (1).

Release expander rivets (2).

Remove RDC transmitter (3).

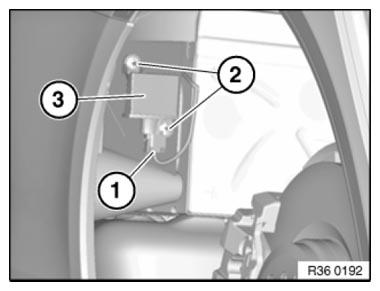

Fig 2: Identifying RDC Transmitter With Plug Connection And Expander Rivets (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.
