36 11 121 Removing and installing/replacing an RDC trigger transmitter (front)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Detach wheel arch cover front section at front.

Disconnect plug connection (1).

Gently press lugs (2) apart.

Remove RDC sensor (3) in direction of arrow.

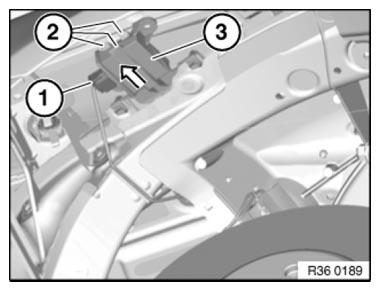

Fig 1: Removing RDC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
