36 11 115 Removing and installing/replacing RDC reception aerial
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove front left UNDERBODY PANELLING .

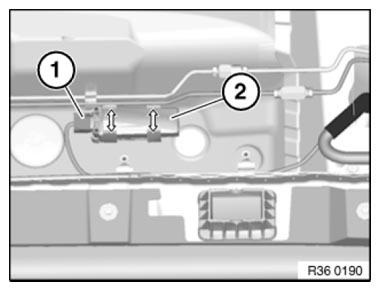

Disconnect plug connection (1).
Gently press retaining tabs apart in direction of arrow and remove RDC aerial (2).
