11 65 030 Removing and installing/replacing exhaust turbocharger, left, cylinders 5-8 (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of fire if oil lines are leaking.
Risk of mixing up vacuum hoses.

Necessary preliminary work

Remove CATALYTIC CONVERTER , cylinders 5-8.

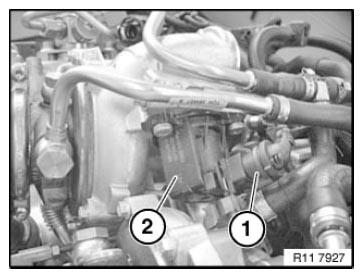

Disconnect plug connection (1) on electric changeover valve (2).

Fig 1: Identifying Plug Connection And Electric Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 42 4AZ .

Unfasten banjo bolt (2).

Tightening torque 11 42 7AZ .

Lay oil line from turbocharger to side.

Installation note:

Replace all sealing rings.

Fig 2: Identifying Turbocharger Banjo Bolt And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

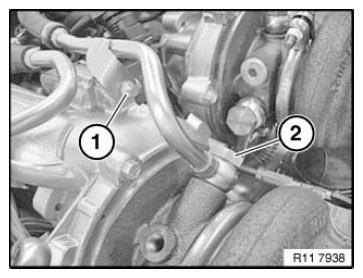

Release screw (1).

Tightening torque 11 53 3AZ .

Release banjo bolt (2).

Tightening torque 11 53 2AZ .

Lay coolant return line to one side.

Installation note:

Replace all sealing rings.

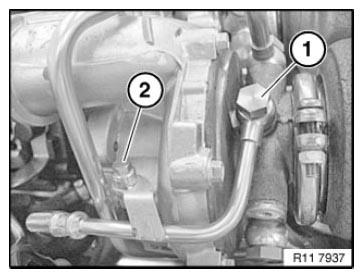

Fig 3: Identifying Coolant Return Line Banjo Bolt And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

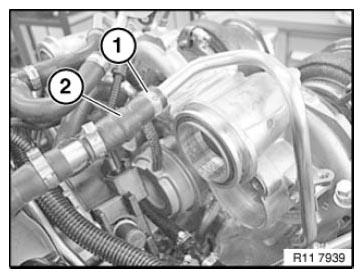

Open hose clamp (1).

Detach coolant feed line (2).

Installation note:

Replace hose clamp (1).

Fig 4: Identifying Coolant Feed Line And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

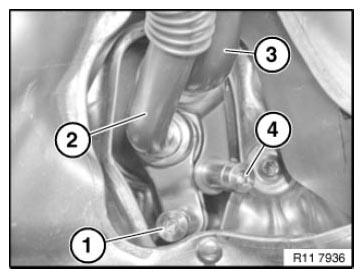

Release screw (4) with a suitable tool.

NOTE: Oil return pipe (3) can only be removed with turbocharger.

Tightening torque 11 42 10AZ .

Fig 5: Identifying Oil Return Pipe And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Open V-band clamp (2).

IMPORTANT: Do not mechanically deform oil return line.

Remove turbocharger with oil return line in upward direction.

Fig 6: Identifying V-Band Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

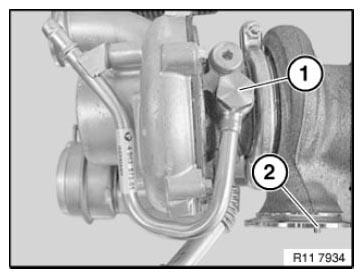

If necessary, convert coolant feed line to new turbocharger.

Release banjo bolt (1).

Tightening torque 11 53 2AZ .

Fig 7: Identifying Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

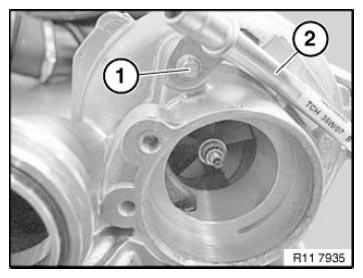

Release screw (1).

Tightening torque 11 53 3AZ .

Modify coolant feed line (2).

Fig 8: Identifying Coolant Feed Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 42 9AZ .

Remove oil return pipe (2).

Installation note:

A new oil return pipe must always be fitted.

Replace gasket.

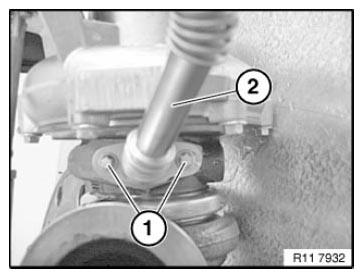

Fig 9: Identifying Oil Return Pipe And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

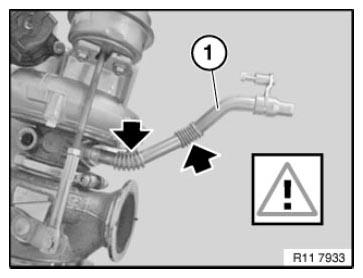

IMPORTANT: A deformed oil return pipe can result in leaks.
Risk of fire if oil line is leaking.

The thermal linear compensators (see arrows) on the oil return pipe (1) must not be mechanically deformed.

Installation note:

Moisten oil return pipe at end with engine oil.

Fig 10: Identifying Oil Return Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The O rings can easily fall into the oil duct.

Installation note:

Replace O-rings on oil return cover (2).

NOTE: Picture shows turbocharger removed.

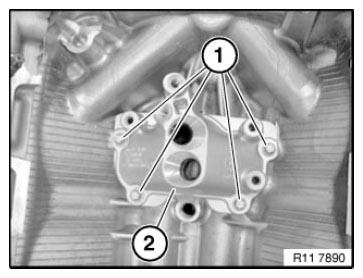

Fig 11: Identifying Oil Return Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket (1) on exhaust manifold.

Installation note:

Check locating apparatus on exhaust manifold.

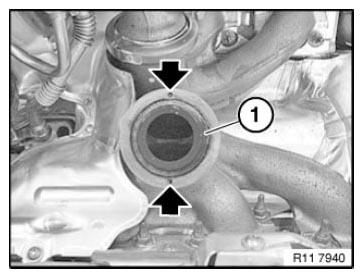

Fig 12: Identifying Gasket On Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Position turbocharger with oil return line on exhaust manifold.

Position V-band clamp (2).

Insert screw (1).

Tightening torque 11 65 1AZ .

Fig 13: Identifying V-Band Clamp And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

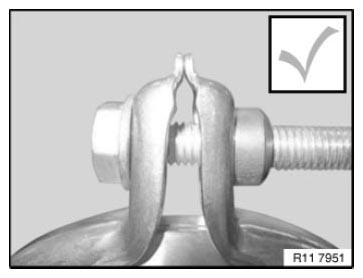

Installation note:

The ends of the V band clamp must rest parallel to each other.

Tightening torque 11 65 1AZ .

Fig 14: Identifying V-Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

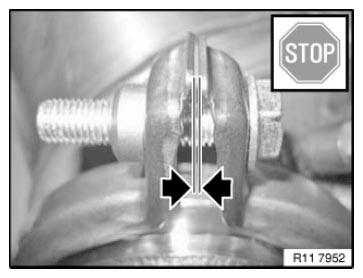

Screw connection of V band clamp is too loose:

If you can see a gap between the ends of the V band clamps, release and then repeat the screw connection.

Tightening torque 11 65 1AZ .

Fig 15: Identifying Gap Between Ends Of V Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Screw connection of V band clamp is too tight:

If the ends of the V band clamp are positioned under each other, release and then repeat the screw connection.

Tightening torque 11 65 1AZ .

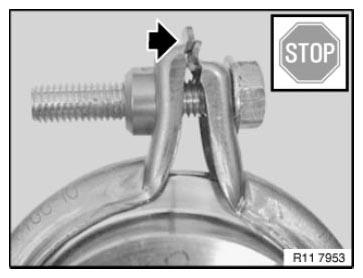

Fig 16: Locating Ends Of V Band Clamp Stop Position

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of mixing up vacuum hoses.

Vacuum hose (1) for cylinders 5-8

Old version: black / blue

New version: black/yellow

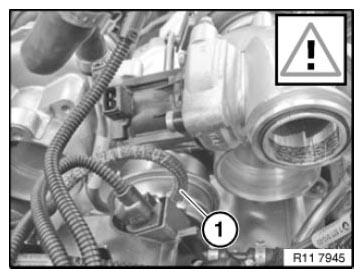

Fig 17: Identifying Vacuum Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check VACUUM CONNECTIONS .

Observe BMW diagnosis instructions.
