11 40 000 Checking engine oil pressure
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

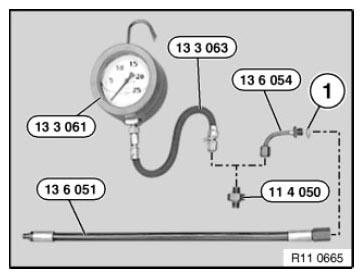

Special tools required:
WARNING:
Risk of scalding!
NOTE:
To check the engine oil pressure, remove the oil pressure switch and install and connect the special tool.
NOTE:
A small amount of engine oil emerges when the oil pressure switch is removed.
Have a cleaning cloth ready.
Necessary preliminary work
- Follow BMW diagnosis instruction
- Remove OIL PRESSURE SWITCH

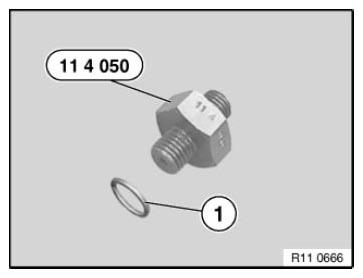

Special tool 11 4 050 is equipped with a sealing ring (1).
IMPORTANT:
Tightening torque of special tool 11 4 050
max. 20 Nm.

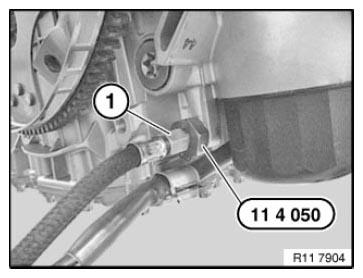

Screw special tool 11 4 050 into crankcase to max. 20 Nm.
Secure union nut (1) of special tool 13 3 063 to max. 15 Nm.
Checking engine oil pressure with DIS Tester
Screw special tool 13 6 054 with sealing ring (1) into special tool 13 6 051 and connect to DIS tester.
Checking engine oil pressure with pressure gauge
Connect special tool 13 3 063 with special tool 13 3 061 (pressure gauge).
Start engine and check engine oil pressure.
