11 13 010 Removing and installing/replacing upper oil sump section (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 240

Necessary preliminary tasks

Secure engine in INSTALLATION POSITION .
Lower FRONT AXLE .
Remove OIL PUMP
Remove front axle differential (AWD only).
Remove front output shaft bearing support (AWD only).
Unclip wiring harness on oil sump.

Remove oil filter cover with oil filter (1) with special tool 11 9 240 .

Tightening torque: 11 42 1AZ.

Fig 1: Removing Oil Filter Cover With Oil Filter Using Special Tool (11 9 240)

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1). Remove oil pipes (2) from oil filter housing.

Release holders of supply/return lines on oil sump

Fig 2: Identifying Oil Lines And Oil Lines Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 11 41 1AZ .

Fig 3: Identifying Oil Sump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

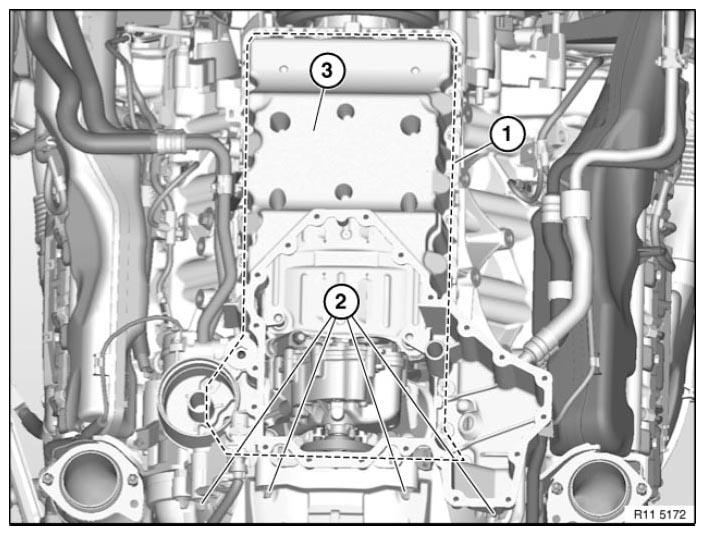

Fig 4: Identifying Bolts Area Line, Transmission Side Bolts And Upper Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts in area of line (1).

Tightening torque 11 13 2AZ .

Release bolts (2) on transmission side 24 00 1AZ .

Remove upper oil sump section (3).

Installation note:

Free sealing surfaces of seal debris and clean.

Replace gasket.

Modify oil pressure switch if replacing oil sump.

Assemble engine.
