11 14 250 Removing and installing/sealing rear coolant end cover (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 470

WARNING: Risk of scalding!

Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

Necessary preliminary work

Remove FLYWHEEL
Drain COOLANT

Release all screws in area (1).

Tightening torque 11 14 5AZ .

Remove end cover.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

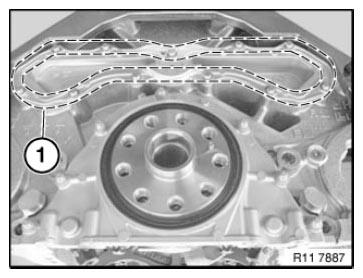

Fig 1: Identifying End Cover Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seal (1).

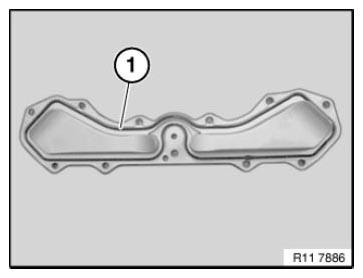

Fig 2: Identifying End Cover Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
