11 14 151 Replacing crankshaft radial seal on transmission side (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The radial crankshaft seal can only be replaced completely with the end cover.
The radial crankshaft seal is an integral part of the end cover and can not be replaced individually.

Necessary preliminary work

Drain off engine oil . See 00 00 610 SERVICE - ENGINE OIL (N63) or 11 00... SERVICE - ENGINE OIL (N63) .
Remove FLYWHEEL .

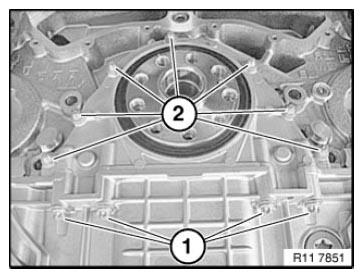

Release screws (1).

Unfasten screws (2).

Carefully remove end cover with radial crankshaft seal.

Fig 1: Identifying Oil Pump Drive Screws And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

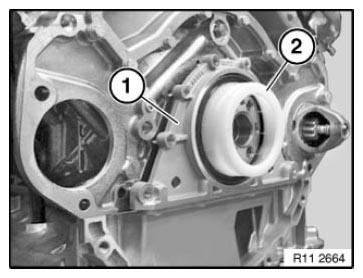

NOTE: Support bush (2) is included in delivery specification.

If the radial crankshaft seal (1) is stored for more than six months without the support bush (2), its operational reliability will no longer be guaranteed.

Radial crankshaft seal (1) must not be reused in this eventuality!

Support bush (2) remains in the radial crankshaft seal (1) and is used as a slip bush during described installation described below.

Fig 2: Identifying Crankshaft Seal And Bush

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The sealing lip of the radial crankshaft seal (1) is highly sensitive and must not be kinked.

Do not touch the sealing lip with your fingers.

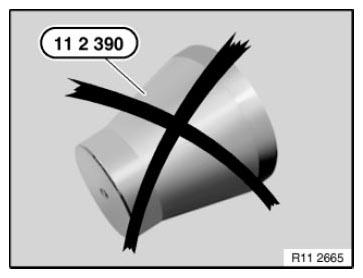

IMPORTANT: Special tool 11 2 390 must not be used.

When the radial crankshaft seal is installed, only the support bush included in the delivery specification may be used as a slip bush.

Fig 3: Caution For Special Tool Using Radial Crankshaft Seal Installation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

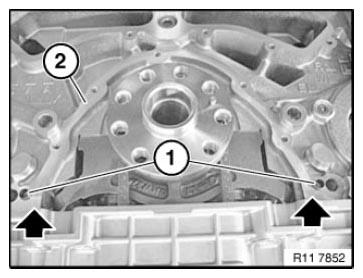

Check fitting sleeves (1) for damage and correct installation position.

Clean sealing surface (2) so that it is free from oil and grease.

Coat contact points on joint along oil sump (see arrows) with Drei Bond 1209.

Fig 4: Identifying Fitting Sleeves And Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Lightly oil running surface of crankshaft.

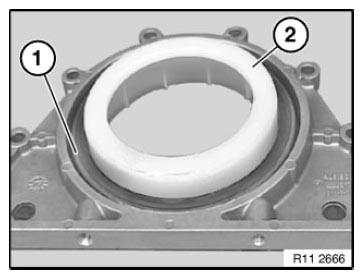

Fit end cover (1) with support bush (2) on crankshaft and push on carefully.

NOTE: Picture shows (N62TU).

Fig 5: Identifying Crankshaft End Cover And Support Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (2) and initially tighten without play.

Insert screws (1) and initially tighten without play.

Tighten down bolts (2) from inside outwards.

Tighten down screws (1) from inside outwards.

Tightening torque 11 14 4AZ .

Fig 6: Identifying Oil Pump Drive Screws And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
