11 14 085 Removing and installing timing case cover, top right (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Gear case cover, cylinders 1-4:

Necessary preliminary work

Remove both SOLENOID VALVES on right side

Release screws (1).

Tightening torque 11 14 3AZ .

Remove timing case cover (2).

Installation note:

Replace gasket.

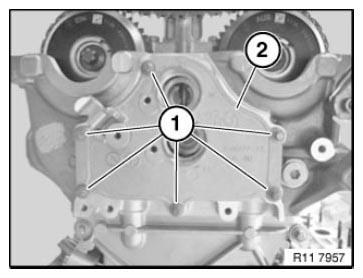

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
