64 22 190 Removing and installing/renewing rear compartment fresh-air grille (Basic A/C system)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Installation:
- Remove REAR CENTRE CONSOLE TRIM .
NOTE:

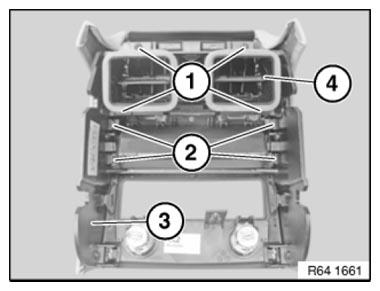

Example graphic on the F01.
Release screws (1).
Snap out retainers (2) and press out fresh-air grille (4) towards front.
Remove fresh-air grille (4) from centre console trim (3).
Installation:
Retaining lugs and retainers must be correctly seated in associated guides and must not be damaged.
