64 22 137 Removing and installing or replacing left fresh-air grille

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON LEFT

NOTE: Example graphic on the F01.

Release screws (1).

Pull out left fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove left fresh-air grille (2).

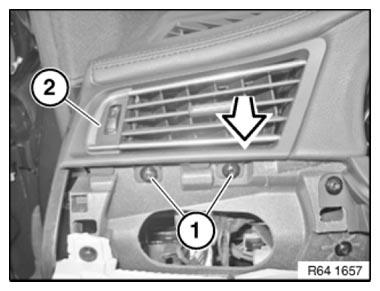

Fig 1: Removing Left Fresh-Air Grille And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh-air duct behind.

Fig 2: Identifying Fresh-Air Grille And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
