64 11 943 Replacing evaporator temperature sensor
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove trim panel for pedal assembly . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .
NOTE:

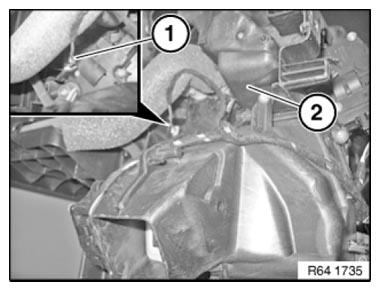

For purposes of clarity, picture shows heating and air-conditioning unit removed.
Disconnect plug connection (1) from evaporator temperature sensor.
Pull evaporator temperature sensor with flat-nose pliers out of heating and air-conditioning unit housing (1).
