64 11 906 Removing and installing/renewing ventilation temperature sensor (centre fresh air grille)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CAR INFOTAINMENT COMPUTER .

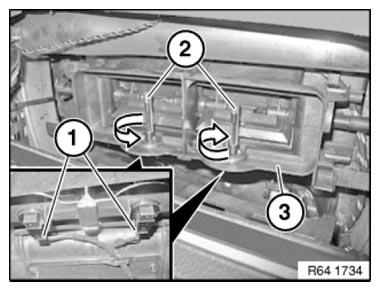

Disconnect plug connection (1).
Turn temperature sensor (2) on plug socket in direction of arrow up to limit position.
Remove temperature sensor (2) from centre fresh air grille (3).
Installation note:
Pay attention to lead sequence.
Make sure temperature sensor (2) is correctly engaged in middle fresh air grille (3).
