64 11 902 Replacing interior temperature sensor blower (A/C control panel)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 450

Necessary preliminary tasks

Remove RADIO AND IHKA CONTROLS .

Release screws (1).

Tightening torque 61 31 2AZ .

NOTE: Use special tool 00 9 450 to tighten screws.
Remove fan (2) from IHKA controls (3).

Installation note:

Make sure pins (4) are correctly located on fan (2).

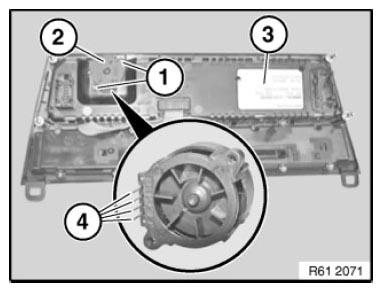

Fig 1: Identifying Fan Pins, IHKA Controls And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
