64 11 889 Replacing interior temperature sensor blower (rear air conditioning control unit)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks
- Remove REAR CENTRE CONSOLE TRIM .

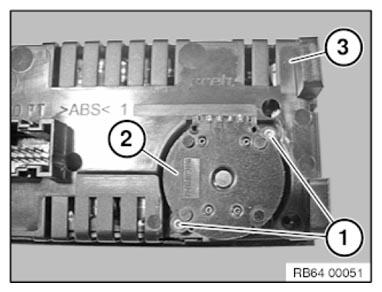

Release screws (1).
Tightening torque 61 31 2AZ .
Remove fan (2) from IHKA controls (3).
Installation note:
Use special tool 00 9 450 to tighten screws.
Make sure pins (4) are correctly located on fan (2).
