64 12 120 Removing and installing/replacing intake silencer for independent/auxiliary heater
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Work on auxiliary heater may only be carried out when it has cooled down.
Work on auxiliary heater may only be carried out when it has cooled down.
Necessary preliminary tasks
- Remove FRONT LEFT WHEEL ARCH TRIM .

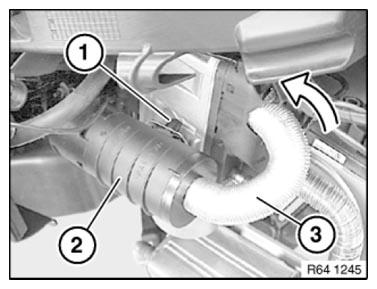

Loosen the retaining clip (1) and unscrew the silencer (2) from the connecting hose (3) in direction of arrow.
Installation note:
If the retaining clip (1) is damaged, replace the intake silencer (2).
