34 41... Electromechanical parking brake - emergency release
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.

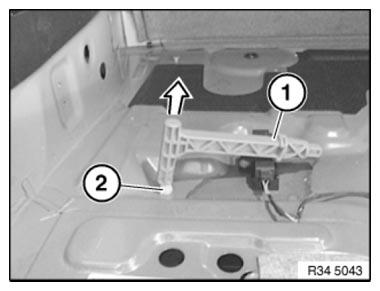

Attach release tool (1) at release point (2).
Forcefully pull release tool against mechanical resistance upwards in direction of arrow until a clear increase in force can be felt and the parking brake can be clearly heard to release.
NOTE:
Startup after emergency release:
- Switch on ignition.
- Press brake button with brake pedal depressed.
- The indicator lamp in the instrument cluster goes out as soon as the parking brake is released.
