34 41 135 Replacing both Bowden cables for parking brake

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with GENERAL INFORMATION .
Bowden cables may only be replaced in pairs.

Necessary preliminary tasks

Remove ACTUATOR UNIT with control unit for parking brake.

Bowden cable, left

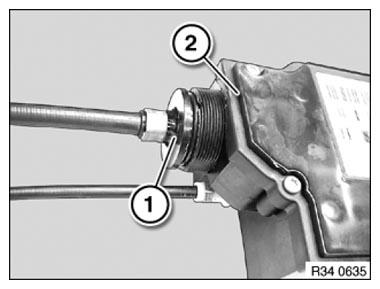

Release union nut (1).

Fig 1: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Tightening torque 34 41 5AZ .

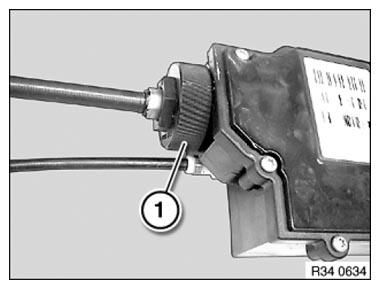

Pull Bowden cable (1) out of actuator unit (2).

Fig 2: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure all parts are absolutely clean.

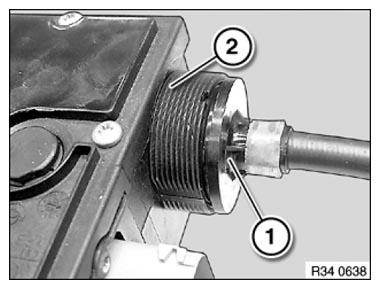

Turn spindle (1) out of actuator unit (2) and remove Bowden cable.

Installation:

Lubricate new spindle with grease provided.

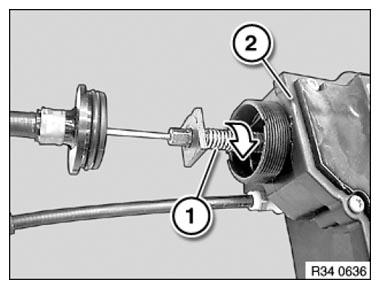

Insert spindle (1) 3 turns into inner spline shaft of actuator unit (2).

Fig 3: Turning Actuator Unit Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

Bowden cable, right

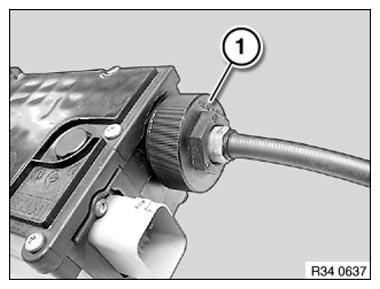

Release union nut (1).

Installation:

Tightening torque 34 41 5AZ .

Fig 4: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

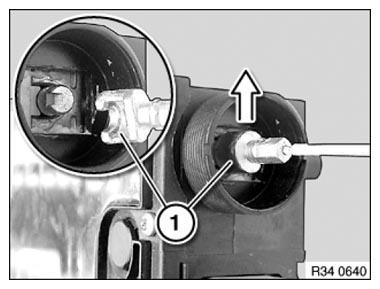

Pull Bowden cable (1) out of actuator unit (2).

Fig 5: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking sleeve (1) and pull out of housing a little.

Fig 6: Identifying Locking Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

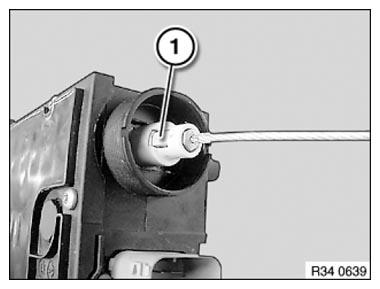

Snap out coupling (1) in direction of arrow.

Fig 7: Removing Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out initial operation/function test in BMW diagnosis system.

Path
- Function selection
- Service functions
- Chassis
- Parking brake
- Initial operation/function test
