61 31 174 Removing and installing operating unit for additional seat functions
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

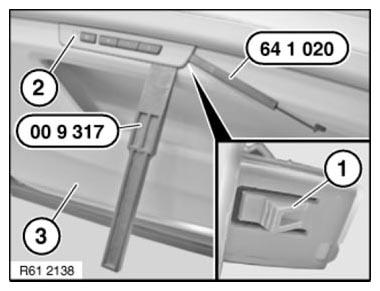

Release latch mechanism (1) on operating unit (2) using special tool 64 1 020 . At same time carefully lever out operating unit (2) using special tool 00 9 317 .
Disconnect plug connection behind and remove operating unit (2).
Installation note:
Make sure operating unit for additional seat functions (2) is correctly seated.
Right-hand drive vehicles only:
The operating unit in the rear passenger compartment is always supplied with the ID for left-hand drive vehicles.
It is therefore necessary after replacement to execute the service module Configuration memory switch rear passenger compartment to new allocation of ID for right-hand drive vehicles.
Perform following service function:
- Configuration memory switch rear passenger compartment
