61 12 002 Replacing positive battery cable (from battery to luggage compartment cable connector)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS for handling vehicle battery.
Necessary preliminary tasks
- Disconnect NEGATIVE BATTERY CABLE .
- REMOVE FRONT SPARE WHEEL WELL TRIM PANEL only with F07.
- Remove luggage compartment floor trim panel only with F11, F12.

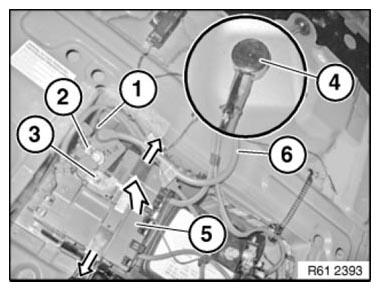

If necessary, unlock and disconnect plug connection (1) of safety battery terminal lead.
IMPORTANT:
Do not under any circumstances pull/lever off safety battery terminal (1) by force.
Loosen nut (2).
Tightening torque 61 21 1AZ .
Unscrew nut (3).
Tightening torque 61 21 2AZ .
Open cap (4) and release nut underneath.
Tightening torque 61 21 4AZ .
Unclip locking brackets from power distribution box (5) in direction of arrow.
Raise power distribution box (5) in direction of arrow and remove positive battery cable (6).
