33..... Overview of rear axle support with rubber mounts

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

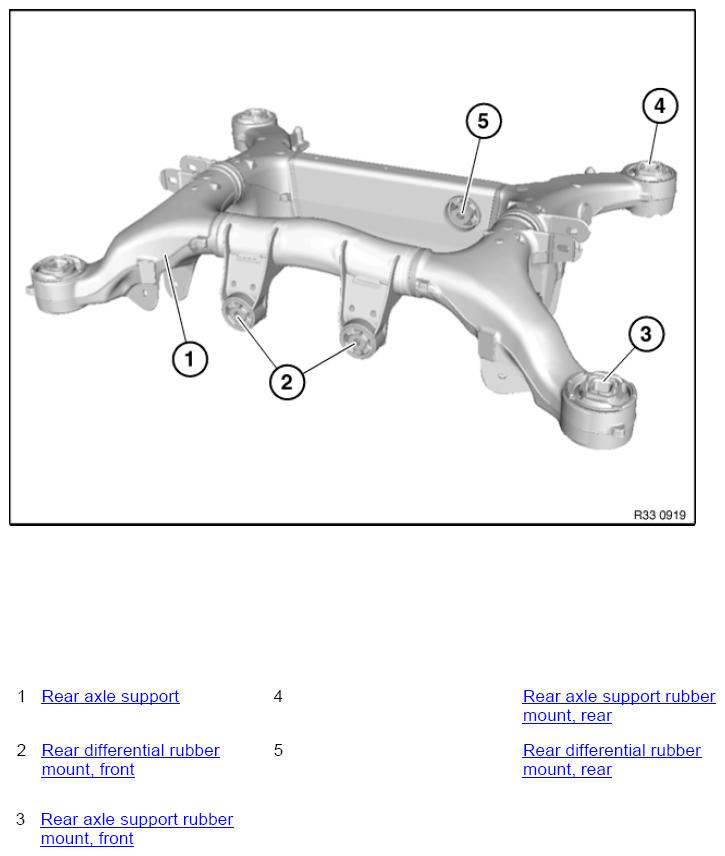

Fig 1: Overview Of Rear Axle Support With Rubber Mounts
G08484339Courtesy of BMW OF NORTH AMERICA, INC.
