13 62 592 Removing and installing/replacing pressure sensor on right charge air cooler (N63 B40/B44 O 0/1)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove right intake port. See 13..... Removing intake duct (N63) .

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 7AZ.

Pull pressure sensor (3) out of right intercooler.

Installation note:

Replace sealing ring on pressure sensor.

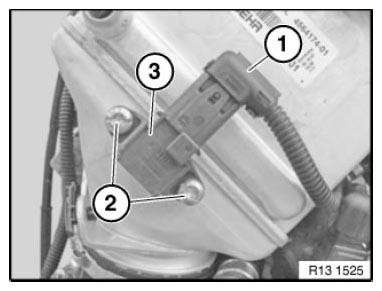

Fig 1: Identifying Intercooler Pressure Sensor With Plug And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
