13 62 560 Removing and installing/replacing left or right hot film air mass meter (N63)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove acoustic cover . See 11 00 REMOVING AND INSTALLING/REPLACING THE ACOUSTIC COVER (N63 B44 O 0/1) or 11 00 REMOVING AND INSTALLING/REPLACING ACOUSTIC COVER (N63) .

Picture shows the left side, the procedure for the right side is identical.

Release connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 6AZ.

Pull hot film air mass meter (3) out of upper section of intake silencer housing.

Installation note:

Replace gasket on hot film air mass meter.

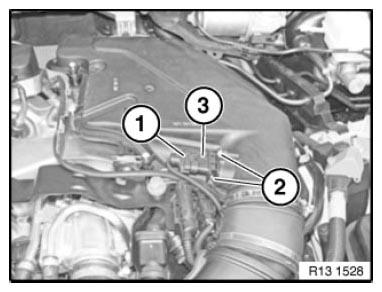

Fig 1: Identifying Air-Mass Flow Sensor With Plug And Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
