Check fuel delivery pressure

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

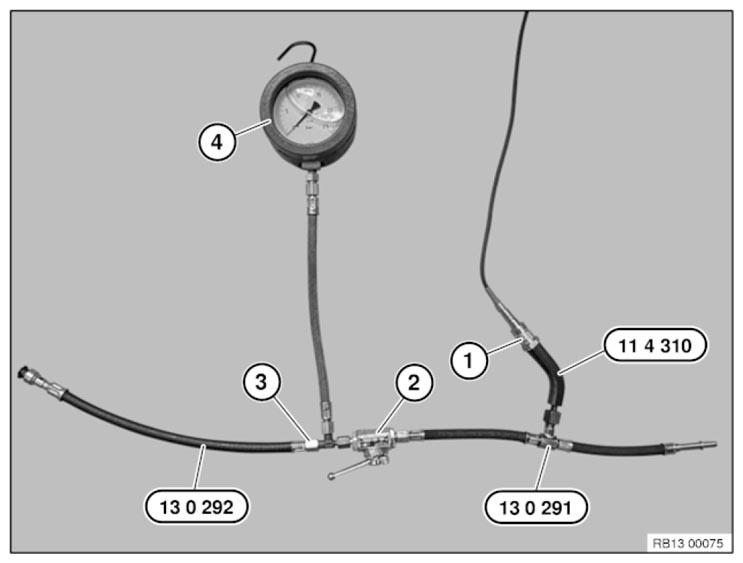

To check the fuel delivery pressure, special tool 13 0 290 must be assembled as follows.

Screw adapter 11 4 310 onto line 13 0 291 . Screw the IMIB 100 bar pressure sensor (1) onto adapter 11 4 310.

Alternatively, the pressure gauge from the set of special tools 13 3 060 can be screwed onto line 13 0 291 .

Between lines 13 0 291 and 13 0 292 , mount a shutoff tap (2) and a T-piece (3) from the set of special tools 13 3 060 .

Close up T-piece (3) from the set of special tools with the cap 13 0 293 .

NOTE: The graphic shows F07 The procedure is identical for other vehicles.

Remove circlip (1).

Unlock and detach fuel line (2) to fuel tank from fuel line (2) to high pressure pump.

Fig 1: Identifying Fuel Line And Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

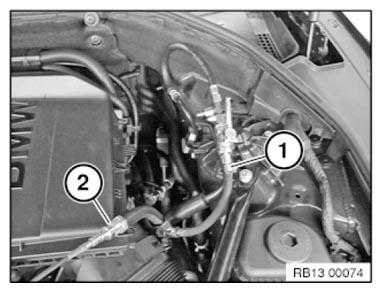

Install special tool (1) 13 0 290 into detached fuel line with IMIB fuel pressure sensor (100 bar).

Connect IMIB with fuel pressure sensor.

Establish fuel delivery pressure. Read off fuel delivery pressure on IMIB and compare with values in diagnosis system.

Fig 2: Installing Special Tool (13 0 290) Into Detached Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Fuel Holding Pressure Special Tool Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
