Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Lower FRONT AXLE SUPPORT .

Release screws (1) from line flange in engine compartment.

Replace sealing ring.

Tightening torque 37 13 8AZ. .

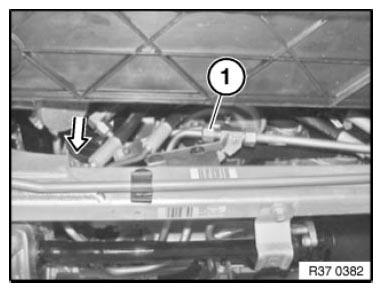

Fig 1: Identifying Line Flange Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) from holder of oil cooler line over front axle carrier.

Release holder in front axle carrier (see arrow) of pressure line (2).

Fig 2: Releasing Front Axle Carrier Pressure Line Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection (1) on T-piece.

Tightening torque 37 13 5AZ.

Feed out line through wheel arch.

Fig 3: Identifying T-Piece Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.
