32 41 331 Replacing pressure line for power steering (from steering gear to junction)

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.

Recycling

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary work

Draw off and dispose of hydraulic fluid from oil reservoir
Release hydraulic steering gear . See 32 13 060 REMOVING AND INSTALLING HYDRAULIC STEERING GEAR or 32 13 065 REMOVING AND INSTALLING ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR (F01/F02/F03/F07 only rear-wheel drive).
Lower front axle support (F04 and all-wheel drive vehicles)

Release screw (1) and remove pressure line (2) from steering gear.

Tightening torque 32 41 5AZ

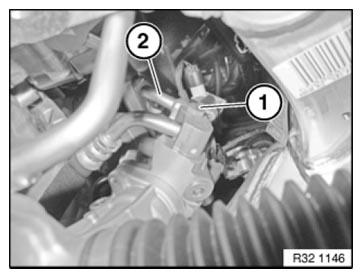

Fig 1: Identifying Steering Box Pressure Line With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove return hose (1) from holder (2).

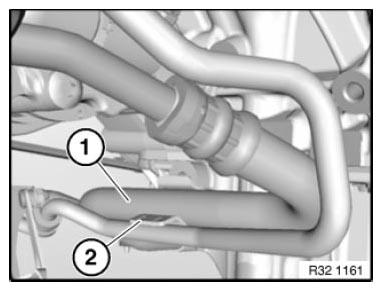

Fig 2: Identifying Steering Box Return Hose With Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 32 41 15AZ

Release nut (2) on holder.

Tightening torque 32 41 7AZ

Disconnect pressure line (3).

Installation note:

Replace all sealing rings.

Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.

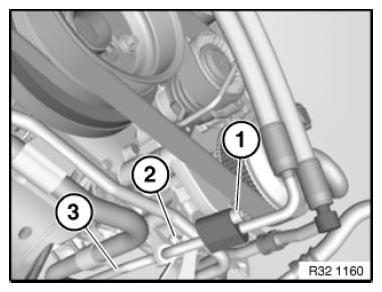

Fig 3: Identifying Pressure Line With Screw And Nut On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Fill and bleed HYDRAULIC SYSTEM
Check line connections for leaks
