32 41 315 Replacing suction line for power steering (from connecting piece to vane pump)
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Recycling
Catch and dispose of hydraulic fluid in a suitable collecting vessel.
Necessary preliminary work
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove raw-air supply on left. See 13..... REMOVING INTAKE DUCT (N63) .
- Remove hydraulic steering gear . See 32 13 061 REPLACING HYDRAULIC STEERING GEAR or 32 13 066 REPLACING ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR (not F04/F10 and all-wheel drive vehicle).
- Lower front axle support (only F04 and all-wheel drive vehicle)

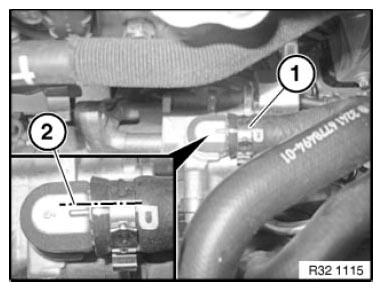

Unfasten hose clamp (1).
Release screw (2).
Tightening torque 32 41 8AZ.
Installation note:
Replace hose clamp.

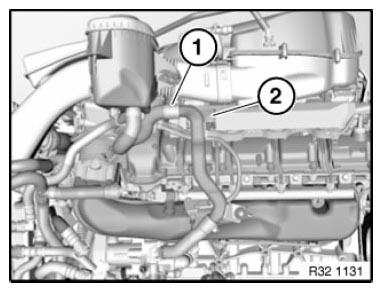

Release hose clamp (1) and detach intake pipe from power steering pump.
Installation note:
Replace hose clamp.
Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.
Align suction line by way of marking (2) to power steering pump connection marking.

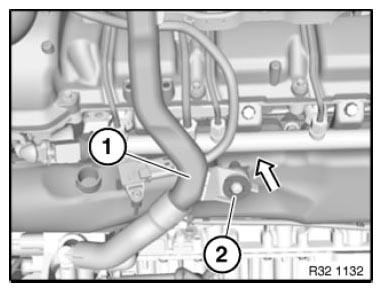

Remove intake pipe (1) in direction of arrow from holder (2).
Remove intake pipe in upward direction.
After installation
- Fill and bleed hydraulic system . See 32 13 006 BLEEDING POWER STEERING (VERSION WITH DYNAMIC DRIVE) or 32 13 006 BLEEDING POWER STEERING UNIT .
- Check line connections for leak tightness
- Carry out INITIAL DYNAMIC DRIVE OPERATION .
