2210778 Fitting aid

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

2210778 Fitting aid Minimum set: Mechanical tools MW

NOTE: For positioning the support bearing on the spring strut of the front axle Fitting aid that replaces (blocked) tool 31 0 000, see Service Information 01 19 10 (674). [Released]

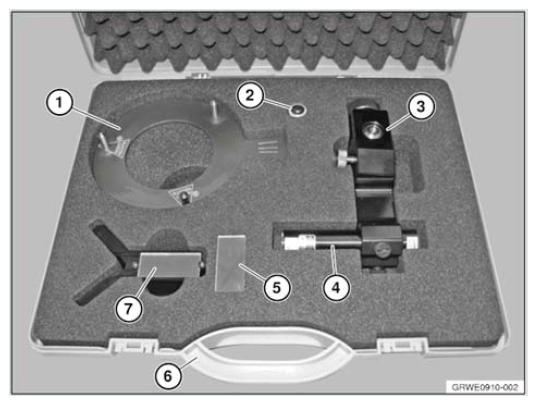

Fig 1: Identifying Fitting Aid (2210778)

Courtesy of BMW OF NORTH AMERICA, INC.

SI number

01 19 10 (674)

Consisting of:

= 2210783 Gauge
NOTE: For positioning the support bearing. [Released]

3 = 2210785 Locating fixture
NOTE: For attaching and aligning the laser on the spring strut. [Released]
4 = 2210779 Laser
NOTE: [Released]
5 = 2210780 Mirrors
NOTE: 1 set (delivery of 2 pieces) replacement for prism 83 30 2 210 780 [Released]
7 = 2210781 Measurement aid
NOTE: Prism with mirror, for aligning the laser beam. [Released]
