23-1370 Mandrel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

0491519 231370 Mandrel MW

NOTE: (Drift) For fitting the radial shaft seal of the transmission output flange [Discontinued]

Storage Location

Z7

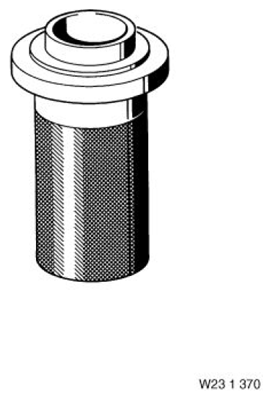

Fig 1: Identifying Mandrel (0491519)
G06965780Courtesy of BMW OF NORTH AMERICA, INC.
